Electrical Metallic Conduit And Pipe
Electrical Metallic Tubing (EMT)provides long time protection to the cables and wires.Because of the bad environments where the cables installed,it is difficult to have a strong protection. With emt conduit, it provides strong corrosion protection in the routing.
TOPELE EMT conduit （electrical metallic conduit）also called EMT tube, EMT piping, EMT tubing is used in the raceway, offering the protection of the

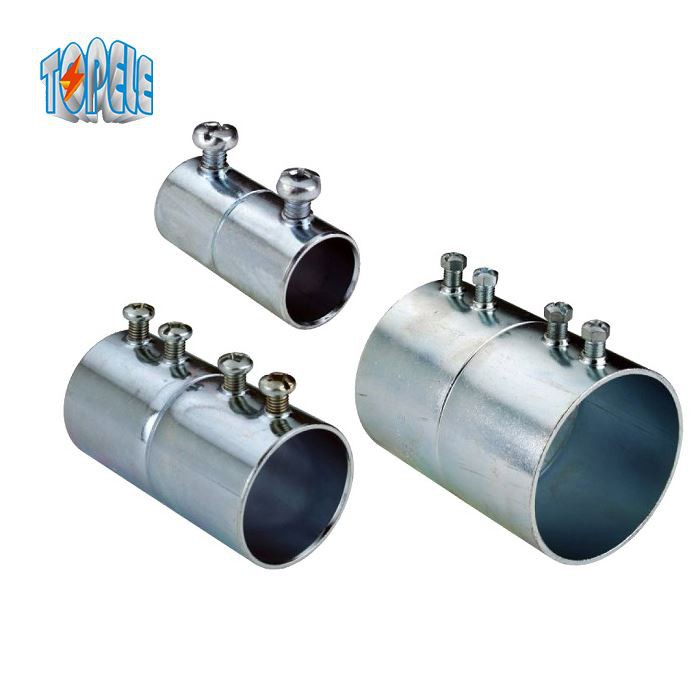

Normally it has a length of 10 feet, 3.05 meters and unthreaded. With pre-galvanized or HDG surface treatment, it is good for corrosion protection.EMT conduit is connected with EMT coupling or EMT connector.
Competitive Advantages:
1. Our EMT conduits are easy to install and can be installed either exposed or concealed.
2. Good Quality: high-quality raw material, smooth weld line, clean ends without sharp edges
3. Manufactured from galvanized steel to prevent rust or corrosion and to withstand years of abuse from environmental, chemical and mechanical forces
4. This metal conduit is non-combustible and safe for exposed and concealed work, lighting circuits and control lines
5. This EMT conduit is a proven equipment grounding conductor and can reduce electromagnetic fields by up to 95%
Basic details:
Material: | Q195 Steel | Place of Origin: | Zhejiang, China |
Surface Treatment: | Pre-galvanized / Hot Dipped Galvanized | Brand Name: | TOPELE |
Size: | 1/2" to 4" | Certification: | ISO/ UL CERTIFICATE |
Standard: | UL 797 ANSI C80.3 | Package: | 10-50 Pcs/ Bundle |
Size | External Diameter | Internal Diameter | Wall Thickness | Length | |
1/2" | 17.93mm | 15.80mm | 1.07mm | 0.85mm | 3.05m |
3/4" | 23.42mm | 20.93mm | 1.25mm | 1.00mm | 3.05m |
1" | 29.54mm | 26.64mm | 1.45mm | 1.10mm | 3.05m |
1-1/4" | 38.35mm | 35.05mm | 1.65mm | 1.30mm | 3.05m |
1-1/2" | 44.20mm | 40.89mm | 1.65mm | 1.30mm | 3.05m |
2" | 55.80mm | 52.50mm | 1.65mm | 1.40mm | 3.05m |
2-1/2" | 73.03mm | 69.37mm | 1.83mm |
| 3.05m |
3" | 88.90mm | 85.24mm | 1.83mm |
| 3.05m |
3-1/2" | 101.60mm | 97.38mm | 2.11mm |
| 3.05m |
4" | 114.30mm | 110.08mm | 2.11mm |
| 3.05m |
You may need Metal Electrical Conduit Parts：
 |  |  |  |
