1/2 Inch EMT Electrical Conduit
Electrical Metallic Tubing (EMT) is a tube used to protect and route electrical wiring in a building. EMT Conduit is generally installed by electricians at the site of installation of electrical equipment. TOPELE emt conduits are made from Q195 steel and with the advantage machine. We guarantee the quality for 10 years.
What is an EMT conduit pipe？
EMT conduit pipe is one of the lightest and thinnest pipes by American standards. The pipe head has no thread, and it is connected with a set screw-type connector which is mostly used in indoor decoration：
1. The main markets of EMT are Latin America, South America, America, Dubai, and other middle eastern countries
2. Corrosion resistance
3. long-lasting protection
4. Interior surface free from defects so that easy to wire pulling
5.10' lengths, with special lengths available
6. steel coupling and connector produced in-house
7. uniform wall thickness
Product Description:
1. Product Name: 1/2 Inch EMT Electrical Conduit
2. Standard: ANSI C80.3
3. Tade Size: From 1/2” to 4”
4. Length: 3050mm (10 feet) or according to the customer’s requirement
5. Usage: EMT conduit pass through the electrical wires with the purpose of protection for the electrical raceway system
6. Surface Finished: Pre-Galvanized or Hot dip galvanized(HDG).
7. Material: Carbon Steel Coil
8. Package: EMT conduits tied into small bundles with steel straps, then covers with a white plastic bag.
| Nominal diameter | External diameter | Wall Thickness | Length | Packing | Weight/Unit(kg) |
| 1. EMT Tube(Electrical metallic tubing) standard pipe | |||||
| 1/2" | 17.93mm | 1.07mm | 3.05m | 20pcs/bundle | 1.36 |
| 3/4" | 23.42mm | 1.24mm | 3.05m | 15pcs/bundle | 2.07 |
| 1" | 29.54mm | 1.45mm | 3.05m | 10pcs/bundle | 3.06 |
| 1-1/4" | 38.35mm | 1.60mm | 3.05m | 5pcs/bundle | 4.56 |
| 1-1/2" | 44.2mm | 1.65mm | 3.05m | 5pcs/bundle | 5.28 |
| 2" | 55.8mm | 1.65mm | 3.05m | 5pcs/bundle | 6.78 |
| 2-1/2" | 73.03mm | 1.83mm | 3.05m | 1pcs/bundle | 9.8 |
| 3" | 88.9mm | 1.83mm | 3.05m | 1pc | 11.98 |
| 3-1/2" | 101.6mm | 2.11mm | 3.05m | 1pc | 15.79 |
| 4" | 114.3mm | 2.11mm | 3.05m | 1pc | 17.8 |
| Nominal diameter | External diameter | Thickness of wall | Length | Packing | Weight/Unit(kg) |
| EMT Tube - thin wall-thickness pipe | |||||
| 1/2" | 17.93mm | 0.85mm | 3.05m | 20pcs/bundle | 1.092 |
| 3/4" | 23.42mm | 1mm | 3.05m | 15pcs/bundle | 1.499 |
| 1" | 29.54mm | 1.1mm | 3.05m | 10pcs/bundle | 2.353 |
| 1-1/4" | 38.35mm | 1.30mm | 3.05m | 5pcs/bundle | 3.623 |
| 1-1/2" | 44.2mm | 1.30mm | 3.05m | 5pcs/bundle | 4.195 |
| 2" | 55.8mm | 1.40mm | 3.05m | 5pcs/bundle | 5.728 |
Applications:

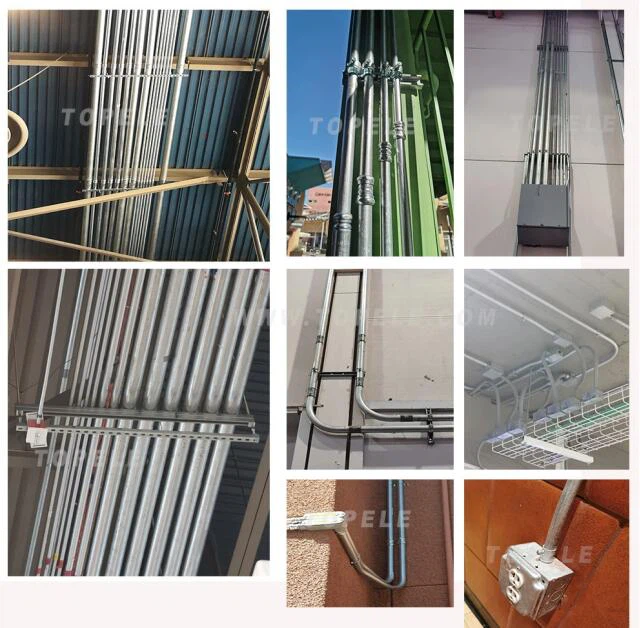

TOPELE EMT CONDUIT is designed to protect and route cables and conductors. It can be installed either exposed or concealed. Install it inside or outside using rain-tight fittings. This EMT CONDUIT is made of Pre-galvanized steel and has an organic coating inside.
From thickness, TOPELE has standard and thinner for customers to choose from, the thickness can also be customized according to the customer's requirements.
From the surface treatment, TOPELE has hot dipped Galvanized (HDG) and Pre-galvanized.
FAQ:
Q1:Are you a manufacturer？
A: Yes we have a factory .
Q2:How can l request product samples？
A: The samples are free but the courier charge will be collected.
Please send us sample list and courier account number.
Q3:How can l request a product catalog？
A: The hard copies of catalogs are free but the courier charge will be collected.
The PDF catalog we can send to you by email or we Transfer
Q4:What is your payment terms？
A:30% T/T deposit, balance against B/L faxed copy；Irrevocable L/C 100%at sight and irrevocable.
Q5:How about the delivery time？
A: According to your order list and quantity mostly delivery in3odays.
Why choose us?
1. We are China's Leading supplier of Electrical Pipe,Strut Channel, and Fittings.
2. TOPELE is a famous brand and has already been approved by a project engineer in a different country.
3. Inspected by the Inspection Institution of UL Certification.
4.100%QC inspection Before Shipment.
5.Best Quality Best Service with a Competitive price.
