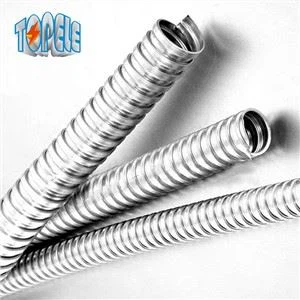

1/2 to 4 inch black grey pvc coated electrical gi flexible conduit pipe
Product Overview ◆ Application Type: Liquid Tight Conduit ◆ Material: Steel ◆ Finish: Corrugated PVC Jacket ◆ Trade Size: 3/8”, 1/2”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”, 2-1/2”, 3”, and 4” ◆ UL File Number: NIL Product Details Liquid Tight Flexible Conduit, designed to UL ID range, used in most...
1/2 to 4 inch black grey pvc coated electrical gi flexible conduit pipe
Product Overview
◆ Product Name:1/2 to 4 inch black grey pvc coated electrical gi flexible conduit pipe
◆ Material: galvanized Steel inner , pvc coated out size
◆ Finish: Corrugated PVC Jacket
◆ Trade Size: 3/8”, 1/2”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”, 2-1/2”, 3”, and 4”
Product Details
1/2 to 4 inch black grey pvc coated electrical gi flexible conduit pipe, designed to UL ID range, used in most industrial and commercial environments for mechanical protection of cable and wire where it would be impractical to install EMT or rigid conduits.
The PVC corrugated flexible metal conduit is available in trade sizes 3/8” through 4”.
Specification
| TOPELE# | Trade Size | Inside Diameter | Outside Diamter | Meters | ||
| PCF01 | 3/8'' | 12.29 | 12.8 | 16.7 | 17.2 | 100 |
| PCF02 | 1/2'' | 15.8 | 16.31 | 20.20 | 20.70 | 100 |
| PCF03 | 3/4'' | 20.83 | 21.34 | 25.50 | 26.10 | 50 |
| PCF04 | 1'' | 26.44 | 27.08 | 31.60 | 32.20 | 50 |
| PCF05 | 1-1/4'' | 35.05 | 35.81 | 40.80 | 41.50 | 25 |
| PCF06 | 1-1/2'' | 40.01 | 40.64 | 46.60 | 47.20 | 25 |
| PCF07 | 2'' | 51.31 | 51.94 | 58.10 | 58.70 | 20 |
| PCF08 | 2-1/2'' | 62.99 | 63.63 | 71.80 | 72.40 | 20 |
| PCF09 | 3'' | 77.98 | 78.74 | 87.20 | 87.90 | 10 |
| PCF10 | 4'' | 101.60 | 102.62 | 111.20 | 112.30 | 10 |
Application:
Used for wire protection at railways, engines, traffic system engineering, air-conditioners, various machineries, automatic controlling equipment, power plants, chemical industries, power distribution system, communication system, vessels, mansions, factory buildings as well as the outdoors' exposed locations.
Usage: protecting wires/cables and provide insulation, waterproofing as well as beautiful outlook of the wiring.
Packing:
