Electrical Metallic Conduit And Pipe

Electrical Metallic Conduit And Pipe

Electrical Metallic Tubing (EMT)provides long time protection to the cables and wires.Because of the bad environments where the cables installed,it is difficult to have a strong protection. With emt conduit, it provides strong corrosion protection in the routing.

Product Details

Usage: TOPELE EMT conduit (electrical metallic conduit)also called EMT tube, EMT piping, EMT tubing, is used in the raceway, offering the protection of the

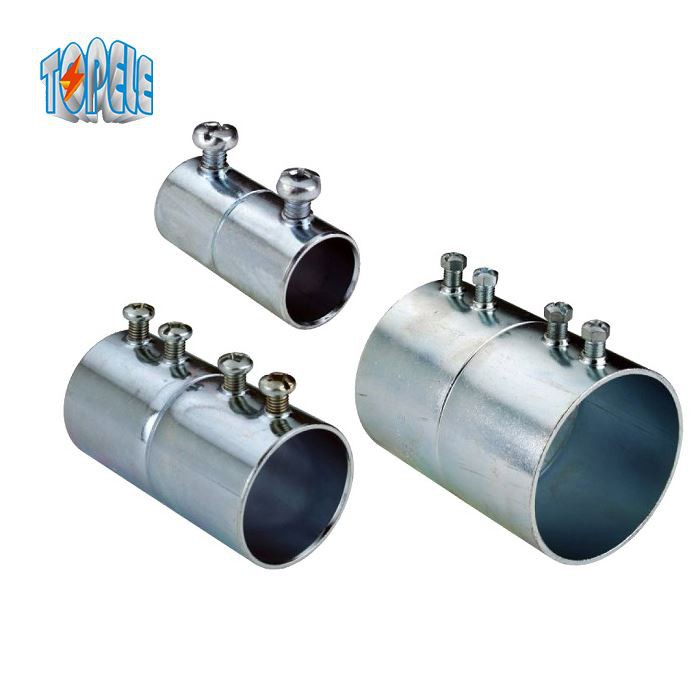

Normally it has length of 10 feet, 3.05 meters and unthreaded. With pre-galvanized or HDG surface treatment, it is good for corrorsion protection.EMT conduit is connected with emt coupling or emt connector.


Basic details:

Material:

Q195 Steel

Surface Treatment:

Pre-galvanized / Hot Dipped Galvanized

Size:

1/2" to 4"

Standard:

UL 797 ANSI C80.3

Place of Origin:

Zhejiang, China

Brand Name:

TOPELE

Certification:

ISO/ UL CERTIFICATE

Package:

10-50 Pcs/ Bundle


Specifications:

Size

External Diameter

Internal Diameter

Wall Thickness

Length

1/2"

17.93mm

15.80mm

1.07mm

0.85mm

3.05m

3/4"

23.42mm

20.93mm

1.25mm

1.00mm

3.05m

1"

29.54mm

26.64mm

1.45mm

1.10mm

3.05m

1-1/4"

38.35mm

35.05mm

1.65mm

1.30mm

3.05m

1-1/2"

44.20mm

40.89mm

1.65mm

1.30mm

3.05m

2"

55.80mm

52.50mm

1.65mm

1.40mm

3.05m

2-1/2"

73.03mm

69.37mm

1.83mm



3.05m

3"

88.90mm

85.24mm

1.83mm



3.05m

3-1/2"

101.60mm

97.38mm

2.11mm



3.05m

4"

114.30mm

110.08mm

2.11mm



3.05m


Payment Terms:
1.T/T at sight
2.Irre. L/C at sight


Shipping Terms:
FOB, CFR (CNF, C&F), CIF


Competitive Advantages:

1. Our EMT conduits are easy to install and can be installed either exposed or concealed.

2. Good Quality: high quality raw material, smooth weld line, clean ends without sharp edges

3. Manufactured from galvanized steel to prevent rust or corrosion and to withstand years of abuse from environmental, chemical and mechanical forces

4. This metal conduit is non-combustible and safe for exposed and concealed work, lighting circuits and control lines

5. This EMT conduits is a proven equipment grounding conductor and can reduce electromagnetic fields by up to 95%

We're known as one of the leading EMT Electrical Conduit manufacturers and suppliers in China. Welcome to wholesale the quality electrical metallic conduit and pipe from us. Competitive price, timely delivery and good after-sale service can be assured. For more info, contact us now.
